Gear Hubs - Pin Type
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number
In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions available upon request
Use Omnicomponents' Part Numbers
or Reference Any Manufacturers' Part Number
In Your Request For Quote
Allied Devices/WM Berg/PIC Design/Omnicomponents
Part Number Cross-Reference
Alternate materials and dimensions available upon request
|

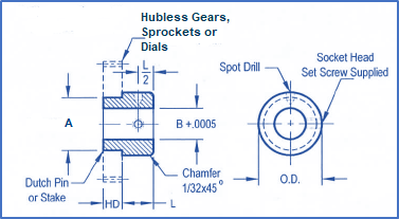

Gear Hubs - Pin Type
Material: 303SS Set Screw Supplied Made in the USA Contact: vic@omnicomponentscorp.com |
303SS Pin Type Gear Hubs
|
|
Allied Devices
DK11 DK12 DK137 DK13 DK14 DK138 DK15 DK16 DK140 DK17 DK18 DK127 DK128 DK129 DK130 DK131 DK132 DK133 DK134 DK135 DK136 DK139 |
WM Berg
PH4-27 PH4-28 PH4-29 PH4-30 PH4-31 PH4-32 PH4-7 PH4-8 PH4-1 PH1-3 PH4-2 PH2-12 PH2-1 PH2-10 PH4-3 PH1-8 PH4-4 PH2-13 PH2-2 PH2-11 PH4-5 PH1-13 PH4-6 PH2-14 PH2-3 PH2-15 PH4-7 PH4-8 PH4-27 PH4-28 PH4-29 PH4-30 PH4-31 PH4-32 PH4-33 PH4-34 PH4-35 PH4-36 PH2-4 PH1-16 PH1-60 PH4-60 PH4-61 PH2-8 PH2-9 PH2-19 PH1-20 PH1-62 PH4-62 PH4-63 PH2-7 PH2-5 PH2-23 PH1-24 PH1-64 PH4-64 PH4-65 PH1-27 PH1-28 PH1-36 PH2-29 PH1-30 PH1-31 PH1-32 PH1-33 PH1-34 PH2-35 PH1-38 PH1-39 PH1-40 PH1-41 PH1-42 PH2-43 PH1-46 PH1-47 PH1-48 PH1-49 PH1-50 PH2-51 PH1-54 PH1-55 PH1-56 PH1-57 PH1-58 PH2-59 |
PIC Design
K1-1 K1-2 K1-3 K1-4 K1-5 K1-6 K1-8 |
Omnicomponents
PH01 PH02 PH03 PH04 PH05 PH06 PH07 PH08 PH09 PH10 PH11 PH12 PH13 PH14 PH17 PH18 PH19 PH20 PH21 PH22 PH26 PH27 PH28 PH29 PH30 PH31 PH07 PH08 PH01 PH02 PH03 PH04 PH05 PH06 PH15 PH16 PH23 PH24 PH25 PH32 PH33 PH34 PH35 PH36 PH37 PH38 PH39 PH40 PH41 PH42 PH43 PH44 PH45 PH46 PH47 PH48 PH49 PH50 PH51 PH52 PH53 PH54 PH55 PH56 PH57 PH58 PH59 PH60 PH61 PH62 PH63 PH64 PH65 PH66 PH67 PH68 PH69 PH70 PH71 PH72 PH73 PH74 PH75 PH76 PH77 PH78 |
A
.3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .3750 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 .6875 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 1.374 |
B
.0781 .0781 .0900 .0900 .0937 .0937 .1200 .1200 .1248 .1248 .1248 .1248 .1248 .1248 .1873 .1873 .1873 .1873 .1873 .1873 .2498 .2498 .2498 .2498 .2498 .2498 .1200 .1200 .0781 .0781 .0900 .0900 .0937 .0937 .1562 .1562 .2405 .2405 .2405 .3123 .3123 .3123 .3123 .3123 .3123 .3123 .3123 .3748 .3748 .3748 .3748 .3748 .3748 .3748 .4998 .4998 .4998 .4998 .4998 .4998 .4998 .4998 .6250 .6250 .6250 .6250 .6250 .6250 .7500 .7500 .7500 .7500 .7500 .7500 1.0000 1.0000 1.0000 1.0000 1.0000 1.0000 1.2500 1.2500 1.2500 1.2500 1.2500 1.2500 |
HD
.062 .125 .062 .125 .062 .125 .062 .125 .062 .093 .125 .187 .250 .575 .062 .093 .125 .187 .250 .575 .062 .093 .125 .187 .250 .575 .062 .125 .062 .125 .062 .125 .062 .125 .062 .125 .062 .125 .187 .250 .062 .093 .125 .187 .250 .375 .575 .062 .093 .125 .187 .250 .375 .575 .062 .093 .125 .187 .250 .375 .500 .575 .125 .187 .250 .375 .500 .575 .125 .187 .250 .375 .500 .575 .125 .187 .250 .375 .500 .575 .125 .187 .250 .375 .500 .575 |
L
.22 .22 .22 .22 .22 .22 .22 .22 .22 .23 .22 .22 .22 .19 .22 .23 .22 .22 .22 .19 .25 .22 .25 .25 .22 .18 .22 .22 .22 .22 .22 .22 .22 .22 .22 .22 .25 .25 .25 .22 .50 .50 .50 .50 .50 .50 .46 .50 .50 .50 .50 .50 .50 .46 .50 .50 .50 .50 .50 .50 .50 .46 .75 .75 .75 .75 .75 .70 .75 .75 .75 .75 .75 .70 1.00 1.00 1.00 1.00 1.00 .96 1.00 1.00 1.00 1.00 1.00 .96 |
OD
7/16 7/16 7/16 71/6 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 1/2 7/16 1/2 1/2 1/2 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 7/16 1/2 1/2 1/2 1/2 7/8 7/8 7/8 7/8 7/8 7/8 7/8 1 1 1 1 1 1 1 1¼ 1¼ 1¼ 1¼ 1¼ 1¼ 1¼ 1¼ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1½ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ 1¾ |
|
Gear Hubs - Pin Type
Material: 303SS Bore Sizes
*Within .0003 T.I.R. Diameters Concentric Set Screw Supplied Made in the USA Contact: vic@omnicomponentscorp.com |
303SS Pin Hubs, 5/16", 3/8" & 1/2" Bores
|
|
Allied Devices
DK150 DK150A DK151 DK151A DK152 DK152A |
PIC Design
K1-50 K1-50A K1-51 K1-51A K2-52 K2-52A |
Omnicomponents
PH79 PH80 PH81 PH82 PH83 PH84 |
Shaft
5/16 5/16 3/8 3/8 1/2 1/2 |
B
.3123 .3123 .3748 .3748 .4998 .4998 |
OD
.875 .875 1.000 1.000 1.250 1.250 |
HL
3/16 1/8 3/16 1/8 3/16 1/8 |
